Rocia.focus LED Luminaire

Rocia.focus LED Luminaire

Pre Order

Part No: ML17

NEW! Rocia.focus LED Pin-Point Luminaire

The Rocia.focus impresses with unique resistance. Even in the roughest industrial environments, the luminaire preserves its stability and ensures precise and focused lighting.

NEW! Rocia.planar LED Area Luminaire

ROCIA.planar is a robust and simultaneously high-precision spotlight whose technical details, in particular the full-metal design, guarantee a high security of investment. Its 3D head joint, high illuminance and outstanding light quality guarantee exact adjustability and set standards in terms of ergonomics.

View full details

WaNEW! Rocia.focus LED Pin-Point Luminaire

The Rocia.focus impresses with unique resistance. Even in the roughest industrial environments, the luminaire preserves its stability and ensures precise and focused lighting. Its adjustable arm, optics and a flicker-free dimming allow an optimum control of the state-of-the-art high-power LEDs.

  • Maintenance-free LED technology
  • Strong high-power LEDs for maximum light
  • Colour temperature neutral white 5000 K
  • Colour rendering Ra > 80
  • Beam angle 10 ° or 40 °
  • Housing made of black and colourless anodised aluminium
  • Continuous, flicker-free dimming (switchable)
  • Button integrated into the luminaire head for On / Off and dimming
  • Robust aluminium housing with solid safety glass screen
  • Viton® seal for high degree of protection
  • Partially spring-loaded arm
  • Degree of protection IP67, protection class I (with transformer) or protection class III (without transformer)
  • 12-28 Volt AC / 12-40 Volt DC or 100-240 Volt AC option
  • Supplied with approx. 3 m connecting cable and shock-proof plug, type CEE 7 / 7 (with transformer) or free strand ends (without transformer)
  • Chemically resistant to many media such as oils or cooling lubricants
  • Various fasteners as accessories

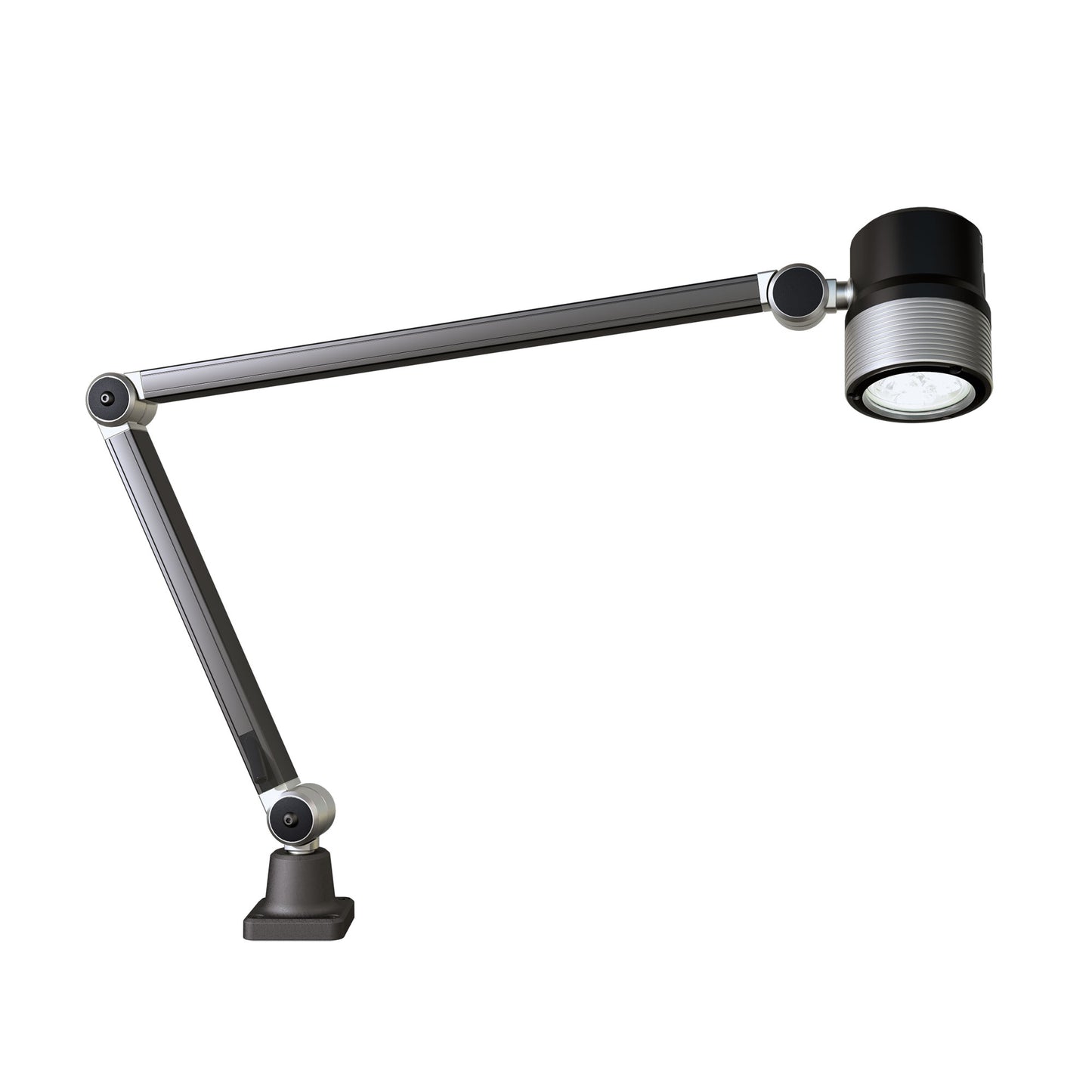

#ML170 Arm-Mounted Luminaire, 8W, 700mm arm, 40° Beam, 12-28VAC/12-40V DC
#ML170P Arm-Mounted Luminaire, 9W, 700mm arm, 40° Beam, 100-240VAC

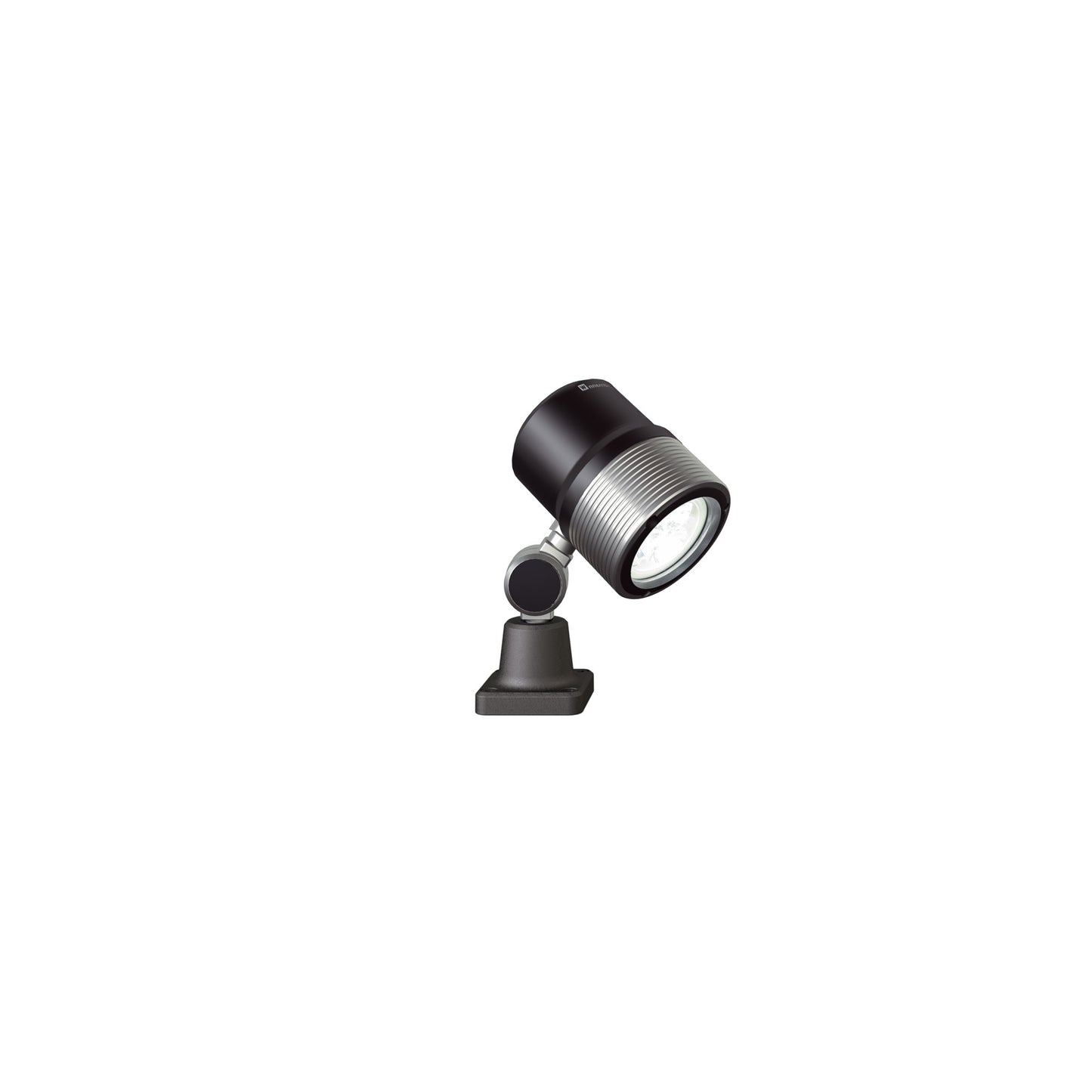

#ML171 Pivoting-head luminaire, 8W, 40° Beam, 12-28VAC/12-40V DC

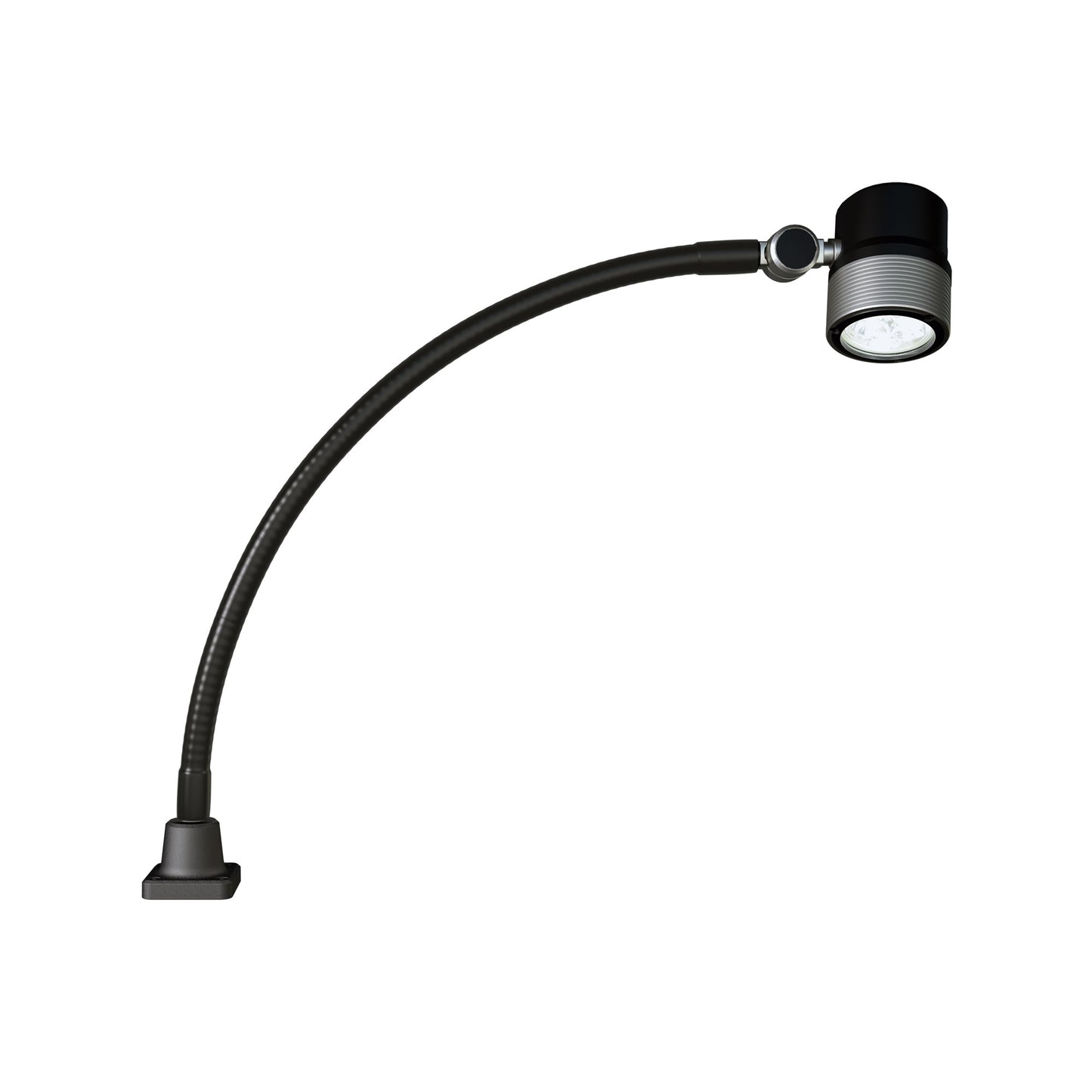

#ML172 Flexible-tube luminaire, 8W, 600mm arm, 40° Beam, 12-28VAC/12-40V DC
#ML172P Flexible-tube luminaire, 9W, 600mm arm, 40° Beam, 100-240VAC

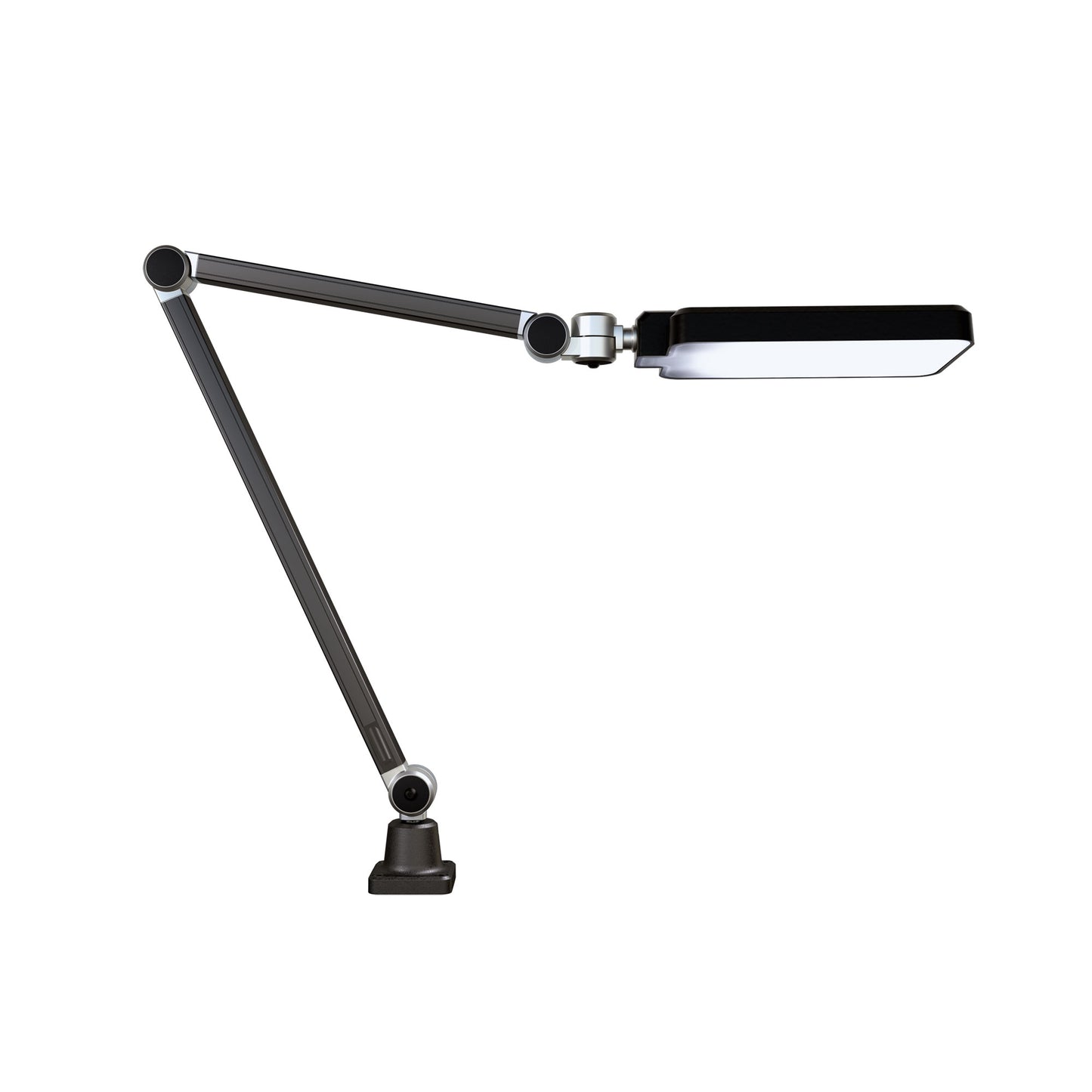

NEW! Rocia.planar LED Area Luminaire

ROCIA.planar is a robust and simultaneously high-precision spotlight whose technical details, in particular the full-metal design, guarantee a high security of investment. Its 3D head joint, high illuminance and outstanding light quality guarantee exact adjustability and set standards in terms of ergonomics.

  • Maintenance-free LED technology
  • For strong, large-area and uniform lighting
  • Robust aluminium housing
  • High degree of protection
  • Chemically resistant to many media such as oils or cooling lubricants
  • Exactly adjustable arm with 3D head joint
  • Control switch on head
  • Connection to mains voltage
#ML173  Arm-Mounted Luminaire, 18W, 700mm arm, 100-240VAC
