Arc Flash PPE Levels Explained: Choosing Between 100 Cal and 140 Cal Protection

Working around live electrical equipment is dangerous. In a single second, an arc flash can release enough energy to melt metal and cause fatal burns. For electricians, maintenance crews, and plant technicians, the only real defence is proper Arc Flash PPE.

Arc flash suits are designed to shield the body from extreme heat and energy. Each suit is rated by its Arc Thermal Performance Value (ATPV) — measured in calories per square centimetre (cal/cm²). This figure shows how much heat the material can withstand before it causes second-degree burns.

Here’s how standard protection levels are defined:

• PPE Level 1: Up to 4 cal/cm² – basic protection for low-risk tasks.
• PPE Level 2: Up to 8 cal/cm² – moderate protection for general electrical work.
• PPE Level 3: Up to 25 cal/cm² – advanced protection for high-risk areas.
• PPE Level 4: Over 40 cal/cm² – full protection for severe arc energy.

Beyond Level 4, we enter the field of 100 cal and 140 cal suits. These are engineered for environments where even a small mistake can be deadly.

Why the Calorie Rating Matters

Each calorie rating represents a threshold of protection. If the arc flash energy goes beyond what your suit can handle, your body takes the rest.

A 40 cal/cm² suit can protect against most industrial faults. But at higher voltages or fault currents, the energy released can exceed 100 cal/cm². That’s where 100 cal and 140 cal suits become essential.

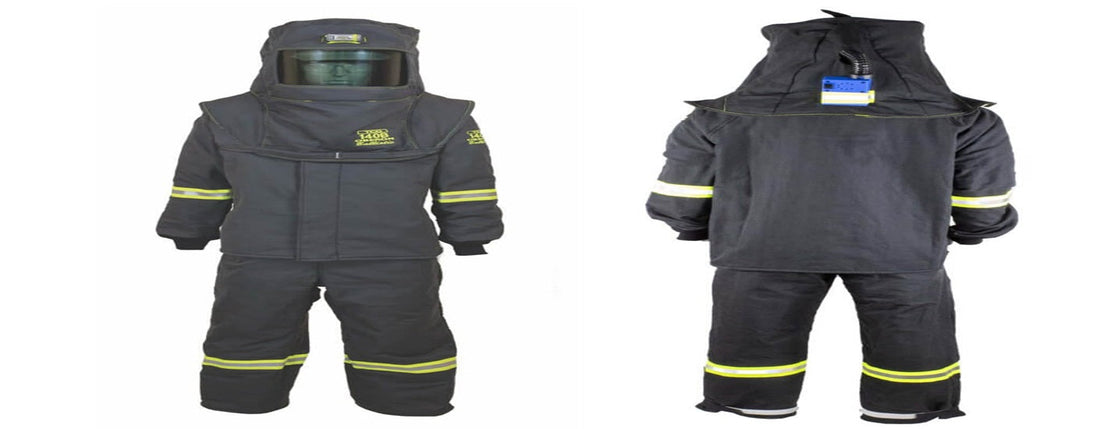

A 100 cal suit can handle more than twice the energy a 40 cal suit can. The 140 cal version goes even further, providing the highest level of arc protection available. These suits use multi-layer fabrics, heat-resistant coatings, and reflective barriers that manage intense thermal radiation while keeping workers mobile.

The right suit isn’t just about compliance. It’s about survival. Even a small misjudgment in energy levels can lead to catastrophic injury.

When to Use 100 Cal and 140 Cal PPE

Selecting the appropriate PPE level depends on your arc-flash risk assessment. The decision is based on system voltage, fault current, and working distance.

Use a 100 Cal Suit for:

• Switchgear maintenance and operation.
• Cable terminations and testing.
• High-voltage systems where arc energy is high but manageable.

The 100 cal suit offers strong protection without excessive bulk. It’s often used in substations, manufacturing plants, and maintenance operations.

Use a 140 Cal Suit for:

• Power generation and transmission work.
• Heavy industrial systems with large fault capacities
• Substations or switchyards with unpredictable fault energy

A 140-cal suit is for extreme exposure. These environments often involve equipment where incident energy can exceed standard PPE ratings. In such places, protection must be absolute.

Safety Standards and Testing

Arc flash suits must meet global safety standards that confirm they perform as intended. The main ones are:

• NFPA 70E – Electrical safety in the workplace.
• ASTM F1506 – Standards for flame-resistant fabrics.
• IEC 61482 – Global standard for arc protective clothing.

A 100 cal or 140 cal suit that passes these tests has been subjected to arc-resistance, flame-spread, and heat-transfer evaluations. Certified PPE from trusted manufacturers provides proven reliability in real-world conditions.

Comfort and Mobility in High-Cal Suits

Old-style arc-flash suits were bulky, hot, and difficult to work in. Modern designs have improved dramatically.

Manufacturers now use lighter, fire-resistant materials and better ergonomic designs. A good suit balances safety and comfort with:

• Ventilation zones that let heat escape.
• Moisture-wicking linings that keep skin dry.
• Flexible outer shells for freedom of movement.
• Streamlined fits that reduce fatigue.

High protection no longer means heavy gear. Today’s 140-cal and 100 cal suits allow full movement while maintaining full-body coverage.

Care, Training, and Maintenance

Even the most advanced PPE will fail if not maintained correctly. Regular checks, cleaning, and training are essential.

Before each use:

Inspect for tears, burns, contamination, or fabric wear.

Cleaning: Follow the manufacturer’s instructions. Avoid bleach or harsh detergents that weaken fire-resistant fibres.

Storage: Keep suits dry and out of direct sunlight. Store them flat or hung, not crumpled.

Replacement: Retire a suit after any arc exposure or visible damage.

Training: Ensure all staff understand arc ratings, PPE categories, and safe work procedures.

Routine inspections extend the life of your PPE and protect your workforce from risk.

Advances in Arc Flash Protection

Technology is changing how arc flash PPE performs. New fabrics are thinner, lighter, and even more resistant to heat.

Innovations include:

• Advanced para-aramid and liquid crystal polymer blends.
• Reflective outer coatings that deflect radiant energy.
• Smart PPE equipped with temperature sensors and data tracking.

These upgrades reduce fatigue and improve safety outcomes. As electrical systems evolve, so does the gear that keeps workers safe.

Why Proper PPE Saves Lives

The energy released in an arc flash can exceed 35,000°F. At that heat, even metal vaporises. PPE doesn’t make that energy disappear—it buys time. A few layers of flame-resistant material can mean the difference between a close call and a fatal injury. Understanding the limits of your gear is vital. A 100 cal suit might be enough for most high-voltage work, but a 140 cal suit gives extra security in unpredictable conditions. Workers should never rely on assumptions. Every task requires a current risk assessment, verified data, and correctly rated protection. Safety is never one-size-fits-all.

Conclusion

Arc flash PPE is not just a regulation—it’s a safeguard for every worker facing electrical danger. Knowing the meaning of 100 cal and 140 cal protection helps teams match the right gear to the right hazard. A 100 cal suit protects against high-voltage work with excellent mobility. A 140 cal suit shields against the most severe arc energy levels known in the industry. Both play a vital role in saving lives when accidents strike. At Redbank Group, we supply certified arc flash protection engineered for real-world performance. Our high-calorie PPE suits combine safety, comfort, and durability—built for those who work in the most challenging electrical conditions.

The right suit, paired with proper training and maintenance, ensures every worker returns home safely. In electrical work, knowledge and preparation are the strongest defences—and Redbank Group helps make both possible.
